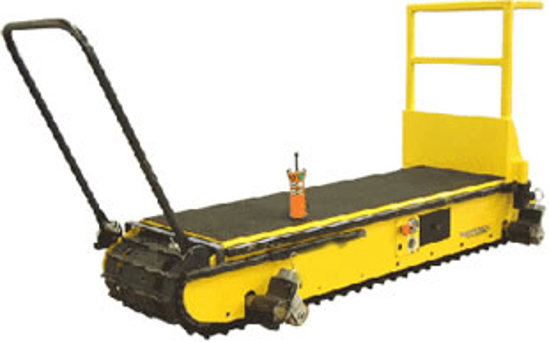

Track-O 75 Terrain Mover (1 Track)


Part No: EW-TO75

Track-O 75 Terrain Mover (1 Track)
*
Call for pricing

Track-O 75 Terrain Mover (1 Track)

Description / Technical Details
FrameSteel
CabinetAluminium
Length75 in1905 mm
Width30 in762 mm
Height12 in305 mm
Weight575 lbs261 Kg
Ground Clearance2.5 in63.5 mm
Load bearing capacity (inclined)1100 lbs500 Kg
Load bearing capacity (flat)1500 lbs680 Kg
Maximum inclination40°
Linear speed22 ft/min6.7 m/min
Motor(1) Industrial
Horse Power (HP)¾ HP
Gearbox200:1 (x1)
Battery included2
Integrated AC-DC Battery ChargerIncluded
Battery Amperage85 Amps (x2)
Operating voltage24 VDC
Continuous Run-Time*2 hours approx. (without load, flat surface)
