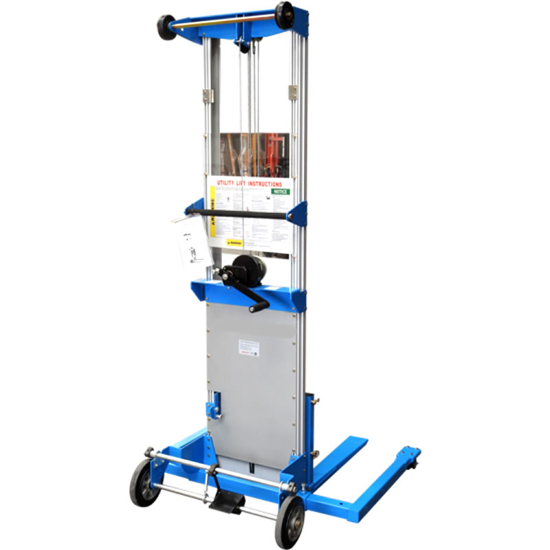

Aluminium Hand Stacker Winch Lifter with Adjustable Leg


Part No: EW-AHSAL-570

These aluminum winch lifters are great for assisting in the lifting, positioning, and installation of goods up to 2.5m or 3.0m in height. All units fold for easy storage and transport.
*
$1,390.00 excl GST

Aluminium Hand Stacker Winch Lifter with Adjustable Leg

These aluminum winch lifters are great for assisting in the lifting, positioning, and installation of goods up to 2.5m or 3.0m in height. All units fold for easy storage and transport.

Description:

  • Manual hand winch control with an automatic braking action
  • Foot pedal brake
  • Adjustable Legs
  • Fits through standard doorways
  • Quick setup – requires no tools
Specification:
  • Capacity: 159kg
  • Lift Height (fork up): 3600mm
  • Lift Height (fork down): 3000mm
  • Fork length: 570mm
  • Single Fork Width: 105mm
  • Outside Width of 2 Forks: 530mm
  • Inside Width of 2 Forks: 330mm
  • Load Center: 254mm
  • Overall Length: 1100mm
  • Overall Width: 736mm
  • Lowest- Highest Mast Height: 2030mm-3600mm
  • Minimum Fork Height: 51mm
  • Adjustable Legs Outside Width: 735-1080mm
  • Adjustable Legs Inner Width: 560mm-900mm
  • Single Leg Width: 105mm
  • Unit Weight: 82kg
