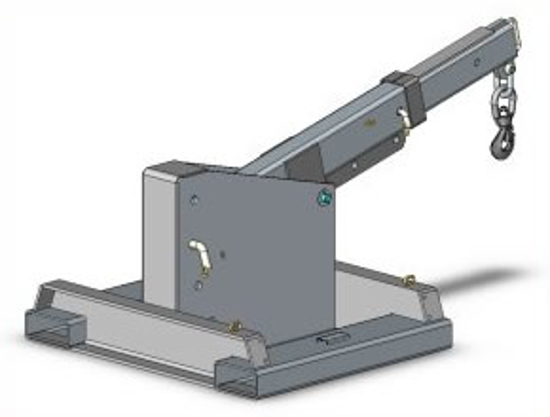

Tilt Jib Short Jib Attachment 4750Kg SWL

Part No: NS-STJS5

The type STJS5 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments.
*
$4,200.00 excl tax
$3,920.00 excl tax



The type STJS5 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 1.36 metres can be gained while the Jib can be fully extended to 2.1 metres.

This Jib has been fitted with wide poackets suitable for Forklifts with special hydraulic Tine positioners. Simply slide onto the Fork Tines and secure with safety chain.

  • Supplied with safety swivel Hook and Shackle
Products specifications
Finish Zinc
SWL (kg) 4750
Load Centre (mm) 980
Pocket Size (mm) 185 x 75
Pocket Centres (mm) 875
Overall Length when closed (mtr) 1.42
Horizontal Centre of Gravity (mm) 650
Vertical Centre of Gravity (mm) 300
Unit Weight (Kg) 210
