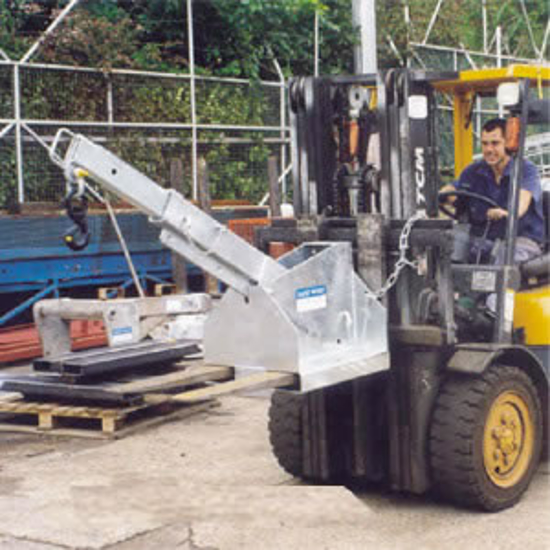

Tilt Jib Short Jib Attachment 2500Kg SWL

Part No: NS-STJS2.5

The type STJS2.5 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments.
*
$3,265.00 excl tax
$3,050.00 excl tax



The type STJS2.5 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 1.4 metres can be gained while the Jib can be fully extended to 2.1 metres.

This Jib has been fitted with wide pockets suitable for Forklifts with special hydraulic Tine positioners. Simply slide onto the Fork Tines and secure with safety chain.

  • Supplied with safety swivel Hook and Shackle
Products specifications
Finish Zinc
SWL (kg) 2500
Load Centre (mm) 905
Pocket Size (mm) 165 x 65
Pocket Centres (mm) 740
Horizontal Centre of Gravity (mm) 650
Vertical Centre of Gravity (mm) 300
Overall Length when closed (mtr) 1.43
Unit Weight (Kg) 160
