Tilt Jib Short Jib Attachment 2500Kg SWL

Part No: NS-TJCS25

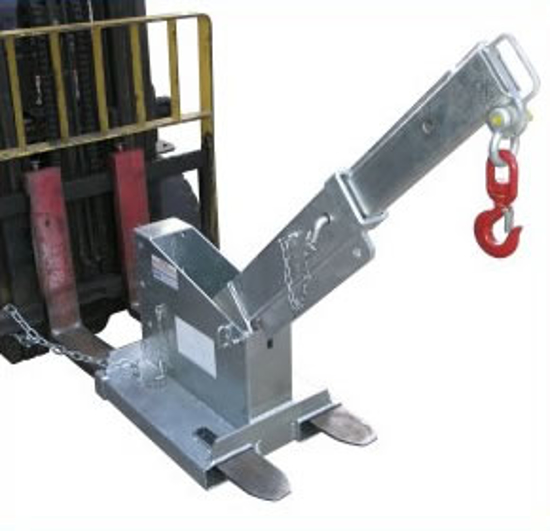

The type TJCS25 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments.
*
$2,060.00 excl tax
$1,925.00 excl tax



The type TJCS25 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 1.4 metres can be gained while the Jib can be fully extended to 2.0 metres. Simply slide onto the Fork Tines and secure with safety chain.

  • Supplied with safety swivel Hook and Shackle
Products specifications
SWL (kg) 2500
Load Centre (mm) 825
Pocket Size (mm) 165 x 65
Pocket Centres (mm) 337
Horizontal Centre of Gravity (mm) 650
Vertical Centre of Gravity (mm) 350
Overall Length when closed (mtr) 1.35
Unit Weight (Kg) 130
