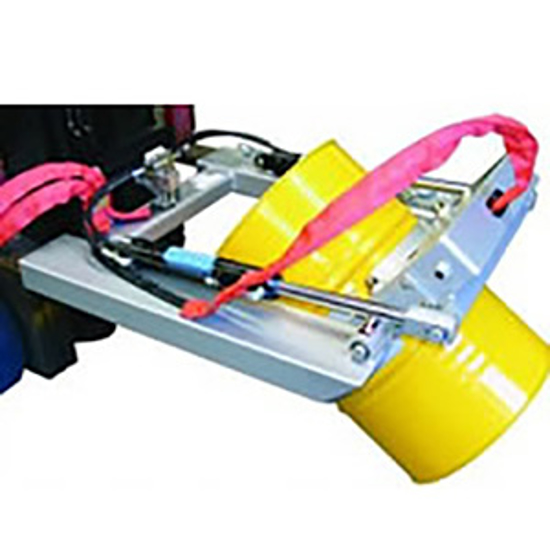

Heavy Duty Hydraulic Drum Rotator with Electric Flow Diverter

Part No: NS-DC-GR2/ EFD

A 12 volt electric Flow Diverter is fitted to the this unit for use on Forklifts where only one additional valve is available.
*
$9,500.00 excl tax
$8,870.00 excl tax


A 12 volt electric Flow Diverter is fitted to the this unit for use on Forklifts where only one additional valve is available. This Flow Diverter splits the hydraulic oil flow to either the grab or rotate function on the unit.

To activate the Flow Diverter, the forklift must be fitted with a push button switch mounted in the cabin, and the control wiring extending to the carriage for connection to the Flow Diverter.

The Unit Weight on this model is 180kg. All other specifications are the same as the standard DC-GR2 unit.
Finish Painted
SWL (kg) 1000
Rotation (degrees) 130
Load Centre (mm) 1307.5
Pocket Size (mm) 185 x 65
Pocket Centres (mm) 874
Horizontal Centre of Gravity (mm) 700mm
Length (mm) 1570
Width (mm) 1074
Unit Weight (Kg) 175
