Forklift Drum Lifter Budget

Part No: NS-DL20

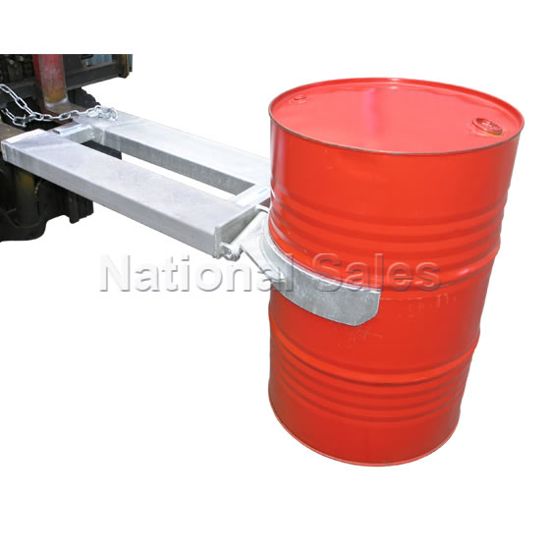

NS-DL20 Designed for standard 205 litre steel drums, the fully automatic clamping action enables safe and precise placement of drums without the operator having to leave the Drivers seat.
*
$600.00 excl tax



NS-DL20 Drum lifter is designed for standard 205 litre (44 gallon) 205 litre drums and features an automatic clamping action which enables safe and precise placement of drums without the operator having to leave the forklift driver's seat. Side support arms are adjustable (if required) to ensure secure clamping.

The drum is gripped by simply pushing the clamp arms against the drum centre, and driving forward with the forklift. The arms will engage around the drum and lock under the rolling ring when raised. The heavier the load, the tighter the grip becomes. To release the drum, simply lower the drum to the ground and reverse the forklift.

FEATURES:

  • Working Load Limit: 500kg
  • Unit Weight: 65kg
  • Fork Pocket Size: 190 x 75mm
  • Fork Pocket Centres: 300mm
  • Zinc Finish

Finish Zinc
SWL (kg) 500
Load Centre (mm) 1340
Horizontal Centre of Gravity (mm) 760
Vertical Centre of Gravity (mm) -50
Pocket Size (mm) 190 x 90
Pocket Centres (mm) 300
Unit Weight (Kg) 65
