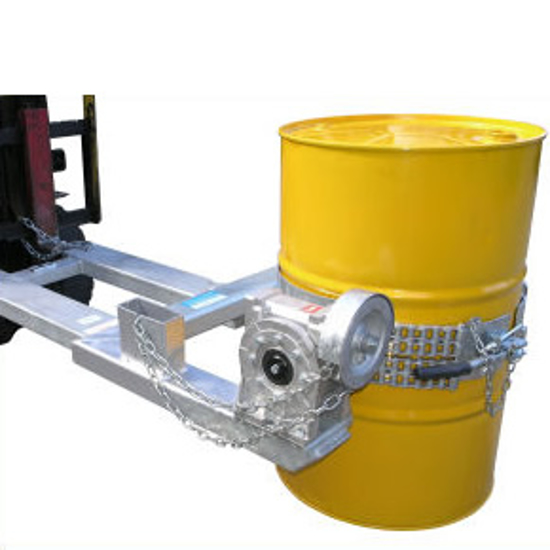

Drum Rotator (Forward & Extended) with Chain Rotation

Part No: NS-DRW-NC

NS-DRW-NC is chain operated forward extended drum rotator with slip on forklift mounting
*
$4,660.00 excl tax
$4,350.00 excl tax


The extended load centre of this rotator is ideal for long reach applications. With the fork arm pockets at 480mm centres this attachment will fit narrow carriage forklifts.
Finish Zinc
SWL (kg) 500
Load Centre (mm) 1640
Rotation (degrees) 360
Pocket Size (mm) 160 x 65
Pocket Centres (mm) 480
Load Centre (mm) 1640
Horizontal Centre of Gravity (mm) 1100
Overall Length (mm) 1976
Overall Width (mm) 945
Unit Weight (Kg) 130
