Budget Forklift Drum Rotator (Chain)

Part No: NS-DLF-C

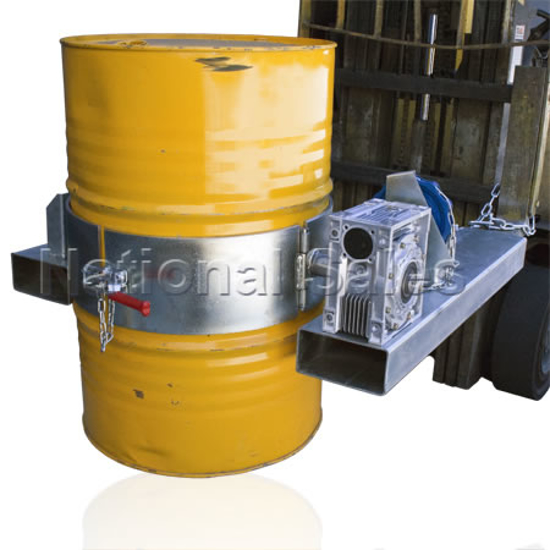

The Budget Forklift Drum Rotator are designed to lift and rotate 205 litre steel drums through 360 degrees. Rotation of the drum is fully controlled throughout the operation.

Model NS-DLF-C with handle is suitable for drum rotation when raised up to chest height. Rotation is carried out via the hand wheel fitted. Model NS-DLF-C with chain can be used for drum rotation of drums up to 3m above ground. Rotation is carried out using the hand chain (similar to a roller door).
*
$1,540.00 excl tax



Budget Forklift Drum Rotator (Chain)

The Budget Forklift Drum Rotator are designed to lift and rotate 205 litre steel drums through 360 degrees. Rotation of the drum is fully controlled throughout the operation.

Model NS-DLF-C with handle is suitable for drum rotation when raised up to chest height. Rotation is carried out via the hand wheel fitted.
Model NS-DLF-C with chain can be used for drum rotation of drums up to 3m above ground. Rotation is carried out using the hand chain (similar to a roller door)

Minimum effort is required for rotation and importantly the use of a large worm drive gearbox provides automatic braking of the drum during rotation – if the operator stops turning the handle or pulling the hand chain the drum will lock in position preventing dangerous and uncontrolled drum movement as seen on cheaper drum rotators.

The large size of the gearbox also greatly improves the life of the attachment reducing gearbox failure.

The drum is secured into the attachment with a sturdy belly strap and locked with the over-centre catch.

A locking pin is then inserted to prevent the accidental release of the catch during the tipping cycle.

Specifications:

  • Zinc finish
  • WLL 400kg
  • Load centre 940mm
  • Unit weight DER40H: 92kg DER40C: 90kg
  • Pocket size 185 x 65mm at 840mm centres
  • HCG 705mm, VCG 35mm
Finish Zinc
SWL (kg) 400
Load Centre (mm) 940
Pocket Size (mm) 185 x 65
Pocket Centres (mm) 840
Horizontal Centre of Gravity (mm) 705
Vertical Centre of Gravity (mm) 35
Unit Weight (Kg) 90
